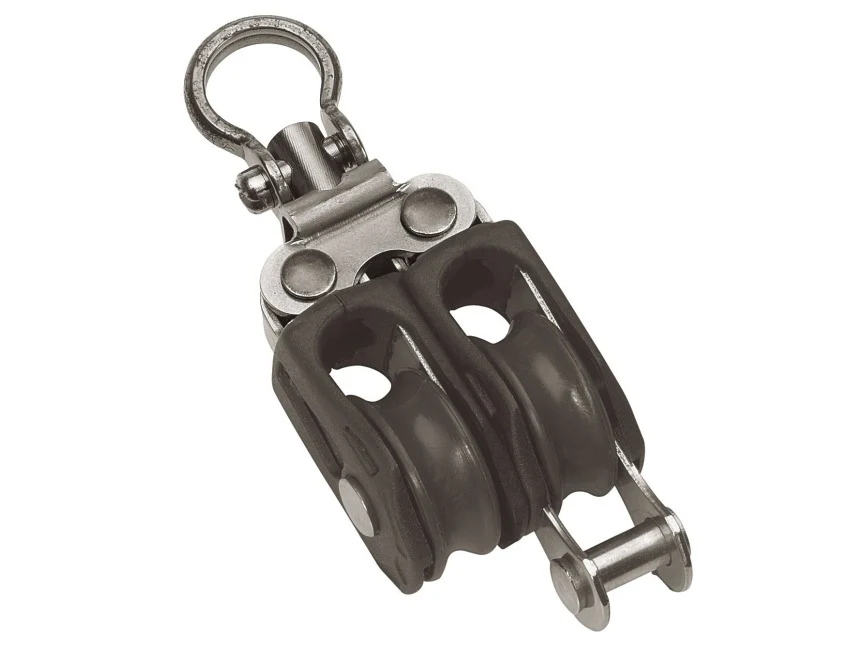

Barton Double, Swivel + Becket - Ball Bearing Block Size 0 - N10231
Size 0
Barton Ball Bearing Blocks feature a unique super-low friction ball race system, comprising acetal sheaves and delrin ball bearings running on a large diameter centre boss.The Barton ball bearing design fits in more load-bearing balls, and consequently promotes extremely low friction performance, even under high loads.
Specification:
Metric (Imperial)
Sheave Size: 20mm x 8mm (25/32 Ć 5/16")
Maximum Rope Diameter: 5mm (3/16")
Breaking Load: 550Kg (1210 lbs)
Safe Working Load: 275kg (606lbs)
Length: 79mm
Weight: 42g
