RWO 17mm Micro Block - Series 17
HomeStore

RWO 17mm Micro Block - Series 17

RWO 17mm Micro Block - Series 17

Ā

Ā  Description Line Diameter Sheave Diameter Weight Bearing Type

Single Acetal Loop (PULR1530)

Series 17 single block with loop top with 17mm Acetal sheave and stainless steel sided plates for general purpose use.Ideal for small marine and industrial rope applications		 6 mm
 17 mm 5 g Plain
Ā Single Brass Loop (PULR1537)

Series 17 single block with loop top with 17mm Brass sheave and stainless steel sided plates for general purpose use.Ideal for small marine and industrial rope applications

4 mm Rope,

3 mm Wire

 18 mm 10 g Plain
Single Acetal Clevis Pin (PULR1550)

Series 17 single block with clevis pin top and 17mm Acetal sheave and stainless steel sided plates for general purpose use.Ideal for small marine and industrial rope applications 		6 mm 17 mm 8 g Plain
Single Acetal Spacer (PULR1560)

Series 17 single block with hollow spacer head to take M3 fastening and 17mm Acetal sheave and stainless steel sided plates for general purpose use.Ideal for small marine and industrial rope applications (Fixing = M3) 		6 mm 17 mm 7 g Plain

Single Acetal Swivel Eye (PULR1563)

Series 17 single block with swivel top and 17mm Acetal sheave and stainless steel sided plates for general purpose use.Ideal for small marine and industrial rope applications 		6 mm 17 mm 10 g Plain

Double Acetal Loop (PULR1570)

Series 17 double block with loop top and 17mm Acetal sheave and stainless steel sided plates for general purpose use.Ideal for small marine and industrial rope applications (Breaking Load = 225 kg) 		6 mm 17 mm 15 g Plain

Single Acetal Micro Cheek and Upright (PULR1580)

Series 17 single cheek block use M3 fastening, 17mm Acetal sheave and stainless steel sided plates for general purpose use.Ideal for small marine and industrial rope applications (Fixing = M3, Breaking Load = 225 kg) 		6 mm 17 mm 10 g Plain

Single Acetal Upright Lead (PULR1590)

Series 17 single upright lead block use 3m fastening,17mm Acetal sheave and stainless steel sided plates for general purpose use.Ideal for small marine and industrial rope applications (Fixing = M3) 		6 mm 17 mm 11 g Plain

Single Acetal Thru Deck (PULR1600)

Series 17 single upright block and 17mm Acetal sheave and stainless steel sided plates for general purpose use.Ideal for small marine and industrial rope applications (Fixing = M3) 		6 mm 17 mm 9 g Plain
Select Sheave Type
Select No. of Sheaves
Select Fixing
From $6.03
RWO 17mm Micro Block - Series 17ā€”
$6.03

More Images

RWO 17mm Micro Block - Series 17 - Image 2

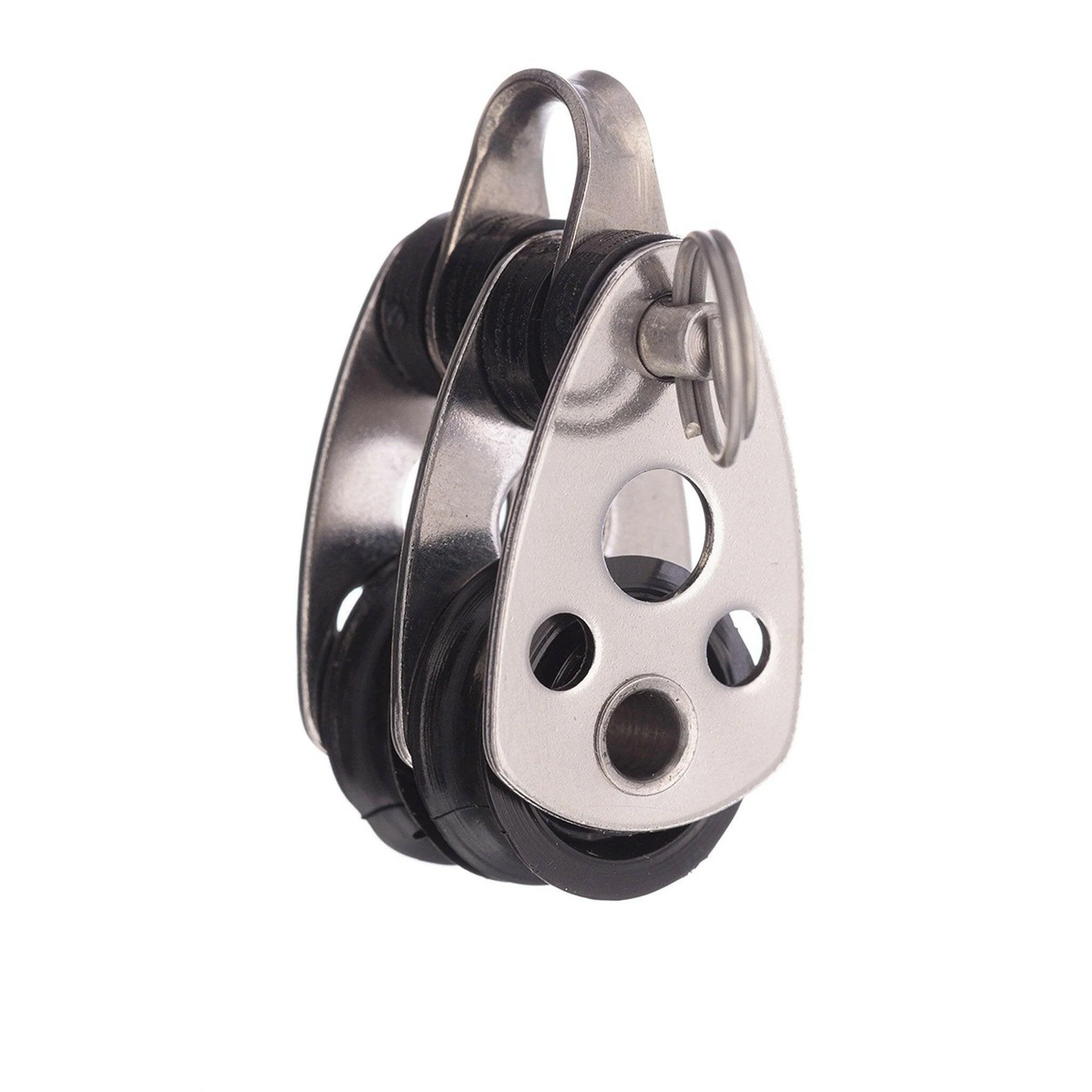

RWO 17mm Micro Block - Series 17 - Image 3

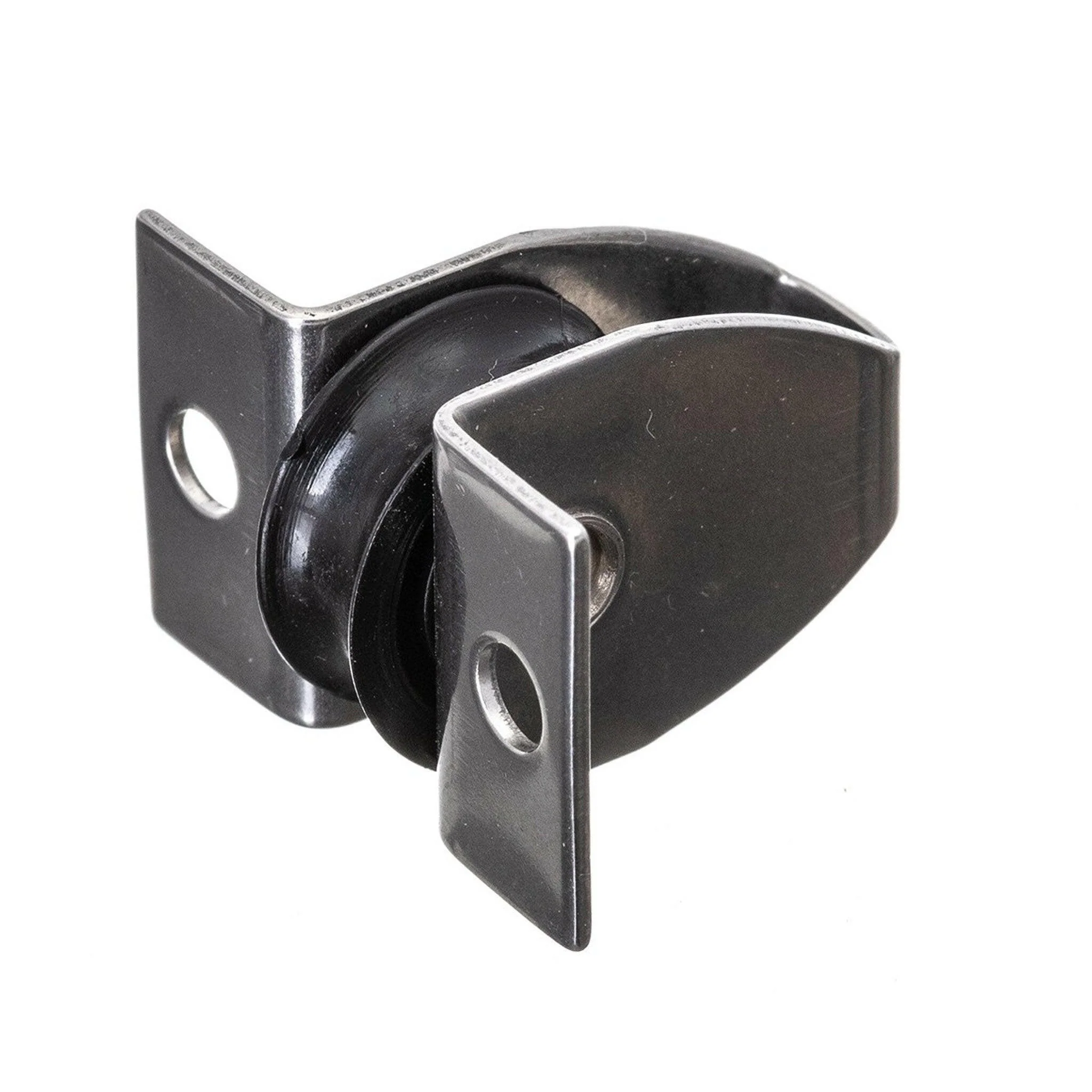

RWO 17mm Micro Block - Series 17 - Image 4

RWO 17mm Micro Block - Series 17

Ā

Ā  Description Line Diameter Sheave Diameter Weight Bearing Type

Single Acetal Loop (PULR1530)

Series 17 single block with loop top with 17mm Acetal sheave and stainless steel sided plates for general purpose use.Ideal for small marine and industrial rope applications		 6 mm
 17 mm 5 g Plain
Ā Single Brass Loop (PULR1537)

Series 17 single block with loop top with 17mm Brass sheave and stainless steel sided plates for general purpose use.Ideal for small marine and industrial rope applications

4 mm Rope,

3 mm Wire

 18 mm 10 g Plain
Single Acetal Clevis Pin (PULR1550)

Series 17 single block with clevis pin top and 17mm Acetal sheave and stainless steel sided plates for general purpose use.Ideal for small marine and industrial rope applications 		6 mm 17 mm 8 g Plain
Single Acetal Spacer (PULR1560)

Series 17 single block with hollow spacer head to take M3 fastening and 17mm Acetal sheave and stainless steel sided plates for general purpose use.Ideal for small marine and industrial rope applications (Fixing = M3) 		6 mm 17 mm 7 g Plain

Single Acetal Swivel Eye (PULR1563)

Series 17 single block with swivel top and 17mm Acetal sheave and stainless steel sided plates for general purpose use.Ideal for small marine and industrial rope applications 		6 mm 17 mm 10 g Plain

Double Acetal Loop (PULR1570)

Series 17 double block with loop top and 17mm Acetal sheave and stainless steel sided plates for general purpose use.Ideal for small marine and industrial rope applications (Breaking Load = 225 kg) 		6 mm 17 mm 15 g Plain

Single Acetal Micro Cheek and Upright (PULR1580)

Series 17 single cheek block use M3 fastening, 17mm Acetal sheave and stainless steel sided plates for general purpose use.Ideal for small marine and industrial rope applications (Fixing = M3, Breaking Load = 225 kg) 		6 mm 17 mm 10 g Plain

Single Acetal Upright Lead (PULR1590)

Series 17 single upright lead block use 3m fastening,17mm Acetal sheave and stainless steel sided plates for general purpose use.Ideal for small marine and industrial rope applications (Fixing = M3) 		6 mm 17 mm 11 g Plain

Single Acetal Thru Deck (PULR1600)

Series 17 single upright block and 17mm Acetal sheave and stainless steel sided plates for general purpose use.Ideal for small marine and industrial rope applications (Fixing = M3) 		6 mm 17 mm 9 g Plain

Product Information

Shipping & Returns

Description

Ā

Ā  Description Line Diameter Sheave Diameter Weight Bearing Type

Single Acetal Loop (PULR1530)

Series 17 single block with loop top with 17mm Acetal sheave and stainless steel sided plates for general purpose use.Ideal for small marine and industrial rope applications		 6 mm
 17 mm 5 g Plain
Ā Single Brass Loop (PULR1537)

Series 17 single block with loop top with 17mm Brass sheave and stainless steel sided plates for general purpose use.Ideal for small marine and industrial rope applications

4 mm Rope,

3 mm Wire

 18 mm 10 g Plain
Single Acetal Clevis Pin (PULR1550)

Series 17 single block with clevis pin top and 17mm Acetal sheave and stainless steel sided plates for general purpose use.Ideal for small marine and industrial rope applications 		6 mm 17 mm 8 g Plain
Single Acetal Spacer (PULR1560)

Series 17 single block with hollow spacer head to take M3 fastening and 17mm Acetal sheave and stainless steel sided plates for general purpose use.Ideal for small marine and industrial rope applications (Fixing = M3) 		6 mm 17 mm 7 g Plain

Single Acetal Swivel Eye (PULR1563)

Series 17 single block with swivel top and 17mm Acetal sheave and stainless steel sided plates for general purpose use.Ideal for small marine and industrial rope applications 		6 mm 17 mm 10 g Plain

Double Acetal Loop (PULR1570)

Series 17 double block with loop top and 17mm Acetal sheave and stainless steel sided plates for general purpose use.Ideal for small marine and industrial rope applications (Breaking Load = 225 kg) 		6 mm 17 mm 15 g Plain

Single Acetal Micro Cheek and Upright (PULR1580)

Series 17 single cheek block use M3 fastening, 17mm Acetal sheave and stainless steel sided plates for general purpose use.Ideal for small marine and industrial rope applications (Fixing = M3, Breaking Load = 225 kg) 		6 mm 17 mm 10 g Plain

Single Acetal Upright Lead (PULR1590)

Series 17 single upright lead block use 3m fastening,17mm Acetal sheave and stainless steel sided plates for general purpose use.Ideal for small marine and industrial rope applications (Fixing = M3) 		6 mm 17 mm 11 g Plain

Single Acetal Thru Deck (PULR1600)

Series 17 single upright block and 17mm Acetal sheave and stainless steel sided plates for general purpose use.Ideal for small marine and industrial rope applications (Fixing = M3) 		6 mm 17 mm 9 g Plain
